DDF single joint elevator
|
DDF Single joint elevator with safety pin to lock latch was
designed to “tail-in” or “l(fā)ay-down” tubing and casing and allow
fast alignment of threads when running casing. DDF type single
joint elevators are constructed in two halves of practically the
same weight, and have a latch mechanism for the two halves at
the center with latch and a safety latch pin combination, DDF
single joint elevators are made of high quality alloy steel,
heat-treated, and MPI, the rated load are 5t (45kN) and10t
(90kN), and cover pipe sizes from 2⅜" to 30" OD. API monogram in
conjunction with numbers, product series numbers are hard die
stamped on shoulders of single joint elevators for tracing, and
single joint elevators shoulders are die stamped with size of
single joint and rated working capacity. Manufacturer’s name
plates are provided on bodies of single joint elevators,
warranty for single joint elevators are listed in single joint
elevator manual.
Note:
DDF Single joint elevators are not designed to accommodate taper
type pipes without use of a lifting plug, failure to comply with
this warning could cause serious bodily harm or property damage,
to use single joint elevators on taper shoulder drill pipes, DFZ
or SPL single joint elevators are optional.
|
|
Elevator model |
Bore Dia.
(mm) |
Casing O.D.
(in) |
Rated Load
Ton (kN) |
|
DDF 4½/5 |
116.69 |
4½ |
5(45) |
|
DDF 4¾/5 |
123.04 |
4¾ |
|
DDF 5/5 |
130.18 |
5 |
|
DDF 5½/5 |
142.88 |
5½ |
|
DDF 5¾/5 |
149.23 |
5¾ |
|
DDF 6/5 |
155.58 |
6 |
|
DDF 6⅝/5 |
171.45 |
6⅝ |
|
DDF 7/5 |
180.98 |
7 |
|
DDF 7⅝/5 |
197.64 |
7⅝ |
|
DDF 7¾5 |
200.81 |
7¾ |
|
DDF 8⅝/5 |
223.04 |
8⅝ |
|
DDF 9/5 |
232.56 |
9 |
|
DDF 9⅝/5 |
248.44 |
9⅝ |
|
DDF 9⅞/5 |
254.79 |
9⅞ |
|
DDF 10¾/5 |
277.83 |
10¾ |
|
DDF 11¾/5 |
303.23 |
11¾ |
|
DDF 12⅞/5 |
331.8 |
12⅞ |
|
DDF 13⅜/5 |
344.5 |
13⅜ |
|
DDF 13⅝/5 |
350.85 |
13⅝ |
|
DDF 14/5 |
360.76 |
14 |
|
DDF 16/5 |
411.96 |
16 |
|
DDF 18/10 |
463.55 |
18 |
10(90) |
|
DDF 18⅝/10 |
479.43 |
18⅝ |
|
DDF 20/10 |
515.14 |
20 |
|
DDF 21½/10 |
553.24 |
21½ |
|
DDF 22/10 |
565.94 |
22 |
|
DDF 24/10 |
617.55 |
24 |
|
DDF 24½/10 |
630.25 |
24½ |
|
DDF 26/10 |
669.14 |
26 |
|
DDF 27/10 |
694.54 |
27 |
|
DDF 28/10 |
720.32 |
28 |
|
DDF 30/10 |
771.53 |
30 |
|
SPL Plate type Single Joint Elevator
|
SPL Single joint elevator with safety pin to lock latch was
designed to “tail-in” or “l(fā)ay-down” taper should drill pipes for
mousehole connections and allow fast alignment of threads when
running drill pipes. SPL type single joint elevators are
designed by using of a lifting plug and constructed in two
halves of practically the same weight, and have a latch
mechanism for the two halves at the center with latch and a
safety latch pin combination, SPL single joint elevators are
made of high quality alloy steel, heat-treated, and MPI, the
rated load are 5t (45kN) and10t (90kN), and cover pipe sizes
from
3½" to 6⅝" OD. API monogram in conjunction with numbers, product
series numbers are hard die stamped on shoulders of single joint
elevators for tracing, and single joint elevators shoulders are
die stamped with size of single joint and rated working
capacity. Manufacturer’s name plates are provided on bodies of
single joint elevators, warranty for single joint elevators are
listed in single joint elevator manual.
|
Model |
For Pipe O.D. |
|
SP 18° |
3½" |
|
4" |
|
4½" |
|
5" |
|
5½" |
|
6⅝" |
|
|

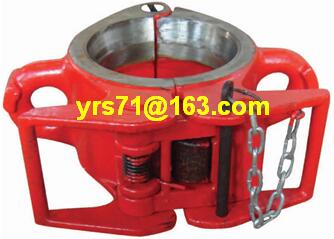

DFZ type Single Joint Elevator
|
DFZ Single joint elevator with safety pin to lock latch was
designed to “tail-in” or “l(fā)ay-down” taper should drill pipes for
mousehole connections and allow fast alignment of threads when
running drill pipes. DFZ type single joint elevators constructed
in two halves of practically the same weight, and have a latch
mechanism for the two halves at the center with latch and a
safety latch pin combination, DFZ single joint elevators are
made of high quality alloy steel, heat-treated, and MPI, the
rated load are 5t (45kN) and10t (90kN), and cover pipe sizes
from 3½" to 6⅝" OD. API monogram in conjunction with numbers,
product series numbers are hard die stamped on shoulders of
single joint elevators for tracing, and single joint elevators
shoulders are die stamped with size of single joint and rated
working capacity. Manufacturer’s name plates are provided on
bodies of single joint elevators, warranty for single joint
elevators are listed in single joint elevator manual.
|
Model |
For Pipe O.D. |
|
DFZ 18° |
3½" |
|
4" |
|
4½" |
|
5" |
|
5½" |
|
6⅝" |
|
|
|
